DESCRIPTION

Basic Info.

Model NO.	K08008CPO
Load Direction	Radial Bearing
Material	Brass
Precision	P0.P6.P5
Cage Material	Brass.Nylon Plastic Full Ball
Outer Ring	Chrome Steel
Inner Ring	Gcr15
Weight	0.13kg
Transport Package	Vacuum Packing +Single Box
Specification	80*96*8
Trademark	zz
Origin	China
HS Code	84821020
Production Capacity	10000

Product Description

KAA opening type 4.762mm(CP0/XP0/AR0

KAA010,KAA015,KAA017

KA opening type 6.35mm(CP0/XP0/AR0

KA020,KA025,KA030,KA035,KA040,KA042,

KA045,KA050,KA055,KA060,KA065,KA070,

KA075,KA080,KA090,KA100,KA110,KA120,

KA140,KA180,KA200

KB opening type 7.938mm(CP0/XP0/AR0

KB020,KB025,KB030,KB035,KB040,KB042,

KB045,KB050,KB055,KB060,KB065,KB070,

KB075,KB080,KB090,KB100,KB110,KB120,

KB140,KB180,KB200

KC opening 9.525mm(CP0/XP0/AR0

KC040,KC042,KC045,KC050,KC055,KC060,

KC065,KC070,KC075,KC080,KC090,KC100,

KC110,KC120,KC140,KC180,KC200

KD opening type 12.7mm(CP0/XP0/AR0

KD040,KD042,KD045,KD050,KD055,KD060,

KD065,KD070,KD075,KD080,KD090,KD100,

KD110,KD120,KD140,KD180,KD200

KF opening type 19.05mm(CP0/XP0/AR0

KF040,KF042,KF045,KF050,KF055,KF060,

KF065,KF070,KF075,KF080,KF090,KF100,

KF110,KF120,KF140,KF180,KF200

KG open 25.4mm(CP0/XP0/AR0

KG040,KG042,KG045,KG050,KG055,

KG060,KG065,KG070,KG075,KG080,

KG090,KG100,KG110,KG120,KG140,

KG180,KG200,KG250,KG300,KG400

JA seals 6.35mm(CP0/XP0/A

JHA010,JHA015,JA020,JA025,JA030,JA035,

JA040,JA042,JA045,JA050,JA055,JA060,JA065

JB seals 7.938mm(CP0/XP0/AR

JB020,JB025,JB030,JB035,JB040,JB042,

JB045,JB050,JB055,JB060,JB065

JU seals 12.7mm(CP0/XP0/AR

JU040,JU042,JU045,JU050,JU055,JU060,

JU065,JU070,JU075,JU080,JU090,JU100,

JU110,JU120

JG seals 25.4mm(CP0/XP0/AR0

JG120,JG140,JG160,JG180

5mm-360mm is 8mm,13mm,20mm

thick 8mm (CP0/XP0/

K02508,K05008,K06008,K07008,K08008,K09008,K10008,K11008,

K12008,K13008,K14008,K15008,K16008,K17008,K1K20008,K25008,K30008,K32008,K34008,K36 thick 13mm open (CP0/XP0/

K02513,K05013,K06013,K07013,K08013,K09013,K10013,K11013,

K12013,K13013,K14013,K15013,K16013,K17013,K18013,K19013,

K20013,K25013,K30013,K32013,K34013,K36013

T20mm(CP0/XP0/

K025hinck 20,K05020,K06020,K07020,K08020,K09020,K10020,K11020,

K12020,K13020,K14020,K15020,K16020,K17020,K18020,K19020,

K20020,K25020,K30020,K32020,K34020,K36020

thick 8mm Seals (CP0/XP0/ARO

J02508,J05008,J06008,J07008,J08008,J09008,J10008,J11008,

J12008,J13008,J14008,J15008,J16008,J1700 Due to the deep integration of modern simplification, miniaturization, lightweighting, and compactness concepts into the design of rotating equipment, REALI-SLIM meets the needs of customers in this regard ® The bearing is designed as a fully hardened, thin section anti friction bearing. The medium and thin-walled bearings solve the size/weight problems of traditional bearings, shafts, and bearing seats, greatly reducing the design weight of the equipment. The REALI-SLIM series thin-walled bearings of Zhongzheng Company are not only suitable for ordinary environments, but also for harsh and corrosive environments. We can provide dimensions of bearing inner diameter from 1 "to 40" or 20 mm to 360 mm, and cross-sectional area from 3/16 "to 1". thin-walled bearings are available in both imperial and metric sizes. The REALI-SLIM series offers open, sealed, and stainless steel bearings, while the ULTRA-SLIM series offers ultra lightweight thin-walled bearings.Equal-section ultra-thin bearings are specially designed bearings, the main characteristics of which are consistent cross-section height and very thin overall thickness. These bearings are typically used in applications where space is limited, high precision and low friction are required. Here are some key points about equal-section slim bearings:1. Design featuresEqual cross-section design: The cross-sectional height of the bearing is consistent throughout the circumference to ensure uniform force.Ultra-thin construction: The overall thickness of the bearing is very small, making it suitable for installation in equipment where space is limited.High precision: High-precision machining technology is usually used to ensure smooth operation and low friction.Lightweight: Due to the small amount of material used, the overall weight is light, making it suitable for weight-sensitive applications.2. Fields of applicationPrecision instruments: such as optical equipment, measuring instruments, etc.Robot: Used on joints to reduce space occupation.Medical equipment: such as CT machine, MRI machine, etc.Aerospace: For high-precision, lightweight components.Electronics: such as hard disk drives, micro motors, etc.3. Material selectionBearing steel: GCr15 and other high-carbon chromium bearing steels are commonly used, which have high hardness and wear resistance.Ceramic materials: for use in high-speed, corrosion-resistant or high-temperature environments.Stainless steel: for use in wet or corrosive environments.4. Manufacturing processPrecision machining: CNC machine tools, grinding machines and other high-precision equipment are used.Heat treatment: improve hardness and wear resistance through quenching, tempering and other processes.Surface treatment: such as chrome plating, nitriding, etc., to enhance corrosion resistance and wear resistance.5. Precautions for selectionLoad capacity: Select the appropriate bearing type according to the actual load.Speed requirements: High speed applications require the selection of appropriate lubrication methods and materials.Installation space: Make sure the bearing size matches the installation space.Environmental conditions: Consider factors such as temperature, humidity, corrosiveness, etc.6. Frequently Asked QuestionsInsufficient lubrication: This may lead to bearing wear or seizure, and the lubrication status needs to be checked regularly.Improper installation: It may cause deformation or damage to the bearing, and it should be installed in strict accordance with the specifications.Material fatigue: Long-term high-load operation may lead to material fatigue, which needs to be checked and replaced regularly.

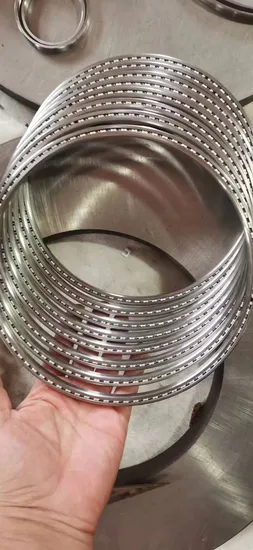

Type C - Thin section radial contact ball bearings bore diameter ranges from 1 inch to 40 inch, cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Compared to standard section bearings, thin section radial contact ball bearing with their large complements of small diameter balls provide greater stiffness and lower torque while permitting a significant reduction in weight and space. These advantages have found wide acceptance in many critical applications including ordnance and are os pace guidance systems, large diameter encoders and radar support systems. In some area, the bearing is required anti-friction & clean & well lubricated, then, double sealed or single deep groove bearings is optimal choice.

Product Number

Bore Dia

Outer Dia

Width

Cross Section

Seal Type

For Load Direction

Ring Material

Dynamic Radial Load

Static Radial Load

Static Thrust

Static Moment

Weight

category id

KAA10AG0

1.000"

1.375"

0.1875"

3/16" x 3/16"

Open

Angular

52100 Chrome steel

194 lbs

340 lbs

450 lbs

970 lbs

0.025 lbs

248

KAA15AG0

1.500"

1.875"

0.1875"

3/16" x 3/16"

Open

Angular

52100 Chrome steel

238 lbs

480 lbs

560 lbs

1380 lbs

0.038 lbs

248

KAA17AG0

1.750"

2.125"

0.1875"

3/16" x 3/16"

Open

Angular

52100 Chrome steel

251 lbs

530 lbs

600 lbs

1520 lbs

0.045 lbs

248

KAA10CL0

1.000"

1.375"

0.1875"

3/16" x 3/16"

Open

Radial

52100 Chrome steel

188 lbs

290 lbs

0.026 lbs

248

KAA15CL0

1.500"

1.875"

0.1875"

3/16" x 3/16"

Open

Radial

52100 Chrome steel

225 lbs

400 lbs

0.039 lbs

248

KAA17CL0

1.750"

2.125"

0.1875"

3/16" x 3/16"

Open

Radial

52100 Chrome steel

242 lbs

460 lbs

0.045 lbs

248

KAA10XL0

1.000"

1.375"

0.1875"

3/16" x 3/16"

Open

Four Point

52100 Chrome steel

247 lbs

290 lbs

730 lbs

170 lbs

0.025 lbs

248

KAA15XL0

1.500"

1.875"

0.1875"

3/16" x 3/16"

Open

Four Point

52100 Chrome steel

296 lbs

400 lbs

1000 lbs

340 lbs

0.039 lbs

248

KAA17XL0

1.750"

2.125"

0.1875"

3/16" x 3/16"

Open

Four Point

52100 Chrome steel

319 lbs

460 lbs

1140 lbs

440 lbs

0.045 lbs

248

KA020AR0

2.000"

2.500"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

450 lbs

790 lbs

960 lbs

2280 lbs

0.1 lbs

249

KA025AR0

2.500"

3.000"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

459 lbs

960 lbs

1100 lbs

2780 lbs

0.12 lbs

249

KA030AR0

3.000"

3.500"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

507 lbs

1140 lbs

1230 lbs

3290 lbs

0.14 lbs

249

KA035AR0

3.500"

4.000"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

552 lbs

1310 lbs

1350 lbs

3790 lbs

0.17 lbs

249

KA040AR0

4.000"

4.500"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

595 lbs

1490 lbs

1470 lbs

4300 lbs

0.19 lbs

249

KA042AR0

4.250"

4.750"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

616 lbs

1580 lbs

1530 lbs

4550 lbs

0.2 lbs

249

KA045AR0

4.500"

5.000"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

637 lbs

1660 lbs

1580 lbs

4810 lbs

0.21 lbs

249

KA047AR0

4.750"

5.250"

0.25"

1/4" x 1/4"

Open

Angular

52100 Chrome steel

657 lbs

1750 lbs

1640 lbs

5060 lbs

0.22 lbs

249
