Overview

Basic Info.

Model NO.	6804
MOQ	1 PCS
Application	Automotive.Tractor.Construction Machinery.Rolling
Feature	High Speed
Size	Standard Size
Cage	Steel Cage.Copper Cage.Nylon Cage
Service	OEM Customized Services
Brand	Dfn Hxk
Delivery Time	3-5 Days
Transport Package	Plastic Tube+Carton+Pallet
Specification	10*20*20
Trademark	DFN HXK
Origin	Shang Dong
HS Code	8482102000
Production Capacity	2000000 Pieces/Year

Packaging & Delivery

Package Size10.00cm * 10.00cm * 10.00cm Package Gross Weight8.000kg

Product Description

Company profile

Shandong Dena Bearing Co., Ltd. is a comprehensive bearing manufacturer integrating research and development , production and sales. Our company has modern production equipment, advanced management concept and high-end scientific and technological talents. Our company is committed to the strategy of high-quality and famous brand and wins the trust of users with excellent product quality. The company specializes in the production of deep groove ball bearings, tapered roller bearings, wheel bearings, truck wheel hub bearings, clutch release bearings, Spherical roller bearing,Pillow Block Ball Bearing and other bearings, but also according to the specific requirements of customers to customize a variety of non-standard bearings. Products are widely used for supporting services of Motors, household appliances, agricultural machinery, construction machinery, construction machinery, roller skates, paper machinery, reduction gears, railway vehicles, crushers, printing machinery, woodworking machinery, automobiles, metallurgy, rolling mills, mining and other model supporting services. Our company has long-term supporting supply with many domestic large manufacturing enterprises, and products are exported to Europe, America, Southeast Asia and other countries and regions. Our company in line with the "service best, quality oriented, reputation first"the production idea to serve customers all the world, and win the good public praise by the stable quality, quality service.
CertificationsOur AdvantagesCustomer feedbackFAQ About Deep Groove Ball Cearing 6000 Series -Extra Light Ball Bearings - ldeal for limited space applications 6200 Series -Light Series Ball Bearings - Balanced between space and load capacity 6300 Series - Medium Series Ball Bearings - ldeal for heavier load capacity applications

Product Description

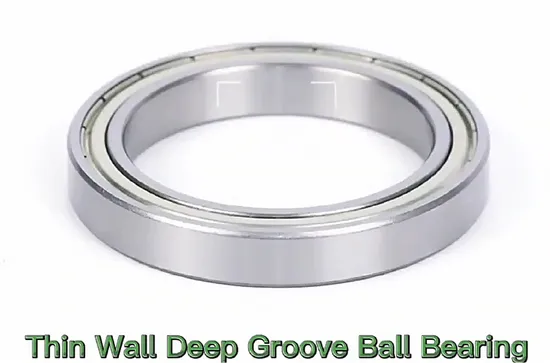

Product Name	Deep groove ball bearing
Material	Chrome Steel , GCR15
Type	OPEN, 2RS, ZZ, NR, BL
Size	d: 3-110 mm, D: 9-240 mm
Grade	P0, P6, P5, P4, P2
Vibration level	V1, V2, V3, V4
Noise level	Z1, Z2, Z3, Z4
Clearance	C0, C3, C4
Shield	ZZ, 2RS, RS, OPEN
Cage	Steel cage, copper cage, nylon cage
Used for	Precision instruments, low-noise motors, automobiles, motorcycles and general machinery
Warranty	1 year
Brand	OEM or HXK
Packing	According to the buyer requests for packaging

Product Parameters

Bearing No.	Dimensions(mm)			Weight	Bearing No.	Dimensions(mm)			Weight
	d	D	B	kg		d	D	B	kg
6001	12	28	8	0.021	6403	17	62	17	0.27
6002	15	32	9	0.03	6404	20	72	19	0.4
6003	17	35	10	0.039	6405	25	80	21	0.53
6004	20	42	12	0.069	6406	30	90	23	0.753
6005	25	47	12	0.08	6407	35	100	27	0.952
6006	30	55	13	0.116	6408	40	110	27	1.221
6007	35	62	14	0.155	6409	45	120	29	1.57
6008	40	68	15	0.185	6410	50	130	31	1.88
6009	45	75	16	0.231	6411	55	140	33	2.25
6010	50	80	16	0.25	6412	60	150	35	2.5
6011	55	90	18	0.362	6413	65	160	37	3.44
6012	60	95	18	0.385
6013	65	100	18	0.41
6014	70	110	20	0.575
6015	75	115	20	0.603

Bearing No.	Dimensions(mm)			Weight	Bearing No.	Dimensions(mm)			Weight
	d	D	B	kg		d	D	B	kg
6200	10	30	9	0.032	6300	10	35	11	0.053
6201	12	32	10	0.037	6301	12	37	12	0.06
6202	12	65	11	0.045	6302	15	42	13	0.082
6203	17	40	12	0.065	6303	17	47	14	0.115
6204	20	47	14	0.106	6304	20	52	15	0.142
6205	25	52	15	0.128	6305	25	62	17	0.232
6206	30	62	16	0.199	6306	30	72	19	0.346
6207	35	72	17	0.288	6307	35	80	21	0.457
6208	40	80	18	0.368	6308	40	90	23	0.639
6209	45	85	19	0.416	6309	45	100	25	0.837
6210	50	90	20	0.463	6310	50	110	27	1.082
6211	55	100	21	0.603	6311	55	120	29	1.367
6212	60	110	22	0.789	6312	60	130	31	1.71
6213	62	120	23	0.99	6213	65	140	33	2.1
6214	70	125	24	1.084	6214	70	150	35	2.55
6215	75	130	25	1.171	6315	75	160	37	3.05
6216	80	140	26	1.448	6316	80	170	39	3.61
6217	85	150	28	1.803	6317	85	180	41	4.284

Detailed Photos

Application

Motors, household appliances, agricultural machinery, construction machinery, construction machinery, roller skates, paper machinery, reduction gears, railway vehicles, crushers, printing machinery, woodworking machinery, automobiles, metallurgy, rolling mills, mining

Packaging & Shipping

Our packing: Industrial pakage+outer carton+pallets Sigle box+outer carton+pallets Tube package+middle box+outer carton+pallets According to your requirments

Company Profile

Office and Factory

Customers and Exhibition

1. Your factory how to control the quality? A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard. 2. Can you tell me the bearing material? A: We have chrome steel GCR15, stainless steel, ceramics and other materials. 3. How long is your delivery time? A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time. 4. OEM and custom you can receive? A: Yes, accept OEM, can also be customized according to samples or drawings for you.
