Angular Contact Ball Bearing Single Row B

Angular Contact Ball Bearing Single Row B

Angular Contact Ball Bearing Single Row B-spindle bearing with large steel balls B7009-E-T-P4S-UL Product Properties Dat

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. B7009-E-T-P4S-UL
Separated Separated
Rows Number Single
Load Direction Radial Bearing
Material Bearing Steel
Transport Package Carton
Specification 45*75*16mm//0.24kg
Origin Germany
HS Code 8482500090
Production Capacity 10000
Product Description

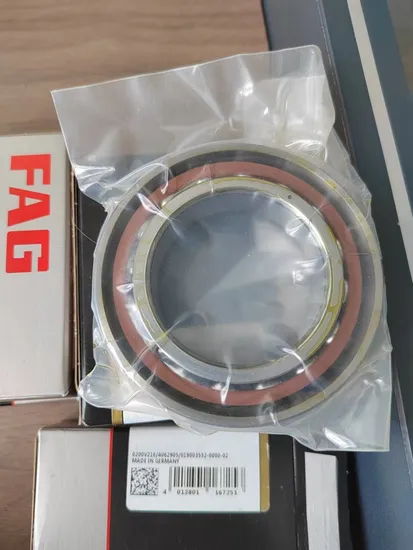

Angular Contact Ball Bearing Single Row B-spindle bearing with large steel balls B7009-E-T-P4S-UL

Product Properties

  • Seal: No Seal
  • Cage Type: TB - Hard Fiber Cage
  • Precision: P4S Precision (Higher than P4)
  • Contact Angle: 25 degrees
  • Pairing: G - Universal Pairing
  • Axial Internal Clearance / Preload: UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  • Lubrication: Standard Lubrication

Data from Schaeffler (medias)

  • Radial Static Load Rating C0r (N): 14200
  • Radial Dynamic Load Rating Cr (N): 26500

Suffix description

  • E: 25° Contact Angle
  • T: Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  • P4S: Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  • UL: Single Bearing, Universal, Light Preload
